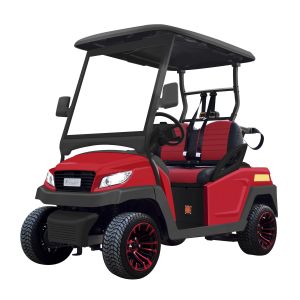

    Advanced Golf Buggy Cart 2 Passenger 48V Lithium Battery With Curtis Controller

    Ask Lasest Price
    Brand Name : Excar
    Model Number : M1S2
    Certification : CE
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 1000 units per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Advanced Golf Buggy Cart 2 Passenger 48V Lithium Battery With Curtis Controller

    Key Components


    SystemDC systemAC system
    ControllerCurtis controller 1266A-5201, 275A, imported from USA directlyCurtis controller 1234E-5221, 275A, imported from USA directly
    Motor

    ADC brand Separately excited

    DC motor 48V 3.7kw

    ADC brand Separately excited

    AC motor 48V 3kw

    BatteryTrojan battery, T875,8V*6pcs, imported from USA directlyTrojan battery, T875,8V*6pcs, imported from USA directly
    Transaxle

    Italian GRAZIANO axle

    with gear ration 1:12

    Italian GRAZIANO axle

    with gear ration 1:16

    Charger

    High Frequency onboard charger

    48V/17A regulator

    High Frequency onboard charger

    48V/17A regulator


    Basic specification


    ItemDescription
    BrandExcar
    ModelM1S2
    Overall dimensions (L x W x H)3200x1200x1800mm
    Ground clearance150mm
    Wheelbase1670mm
    Front wheel tread (mm)860mm
    Rear wheel tread (mm)970mm
    Passenger Capacity2
    Climbing capacity(full load)30%
    Max. forward speed35KM/H
    Endurance mileage80-100KM
    ChassisAluminum chassis
    Net weght400KG
    Min.turning radius2.9M

    Steering & suspersion


    ItemDescription
    Steering System

    Self-adjusting rack and pinion steering system,

    with automatic compensation function

    Brake SystemRear wheel mechanical brake
    AcceleratorHolzer type, stepless speed change
    Front suspensionMcpherson independent spring suspension
    Rear suspensionCoil spring hydraulic shock absorber
    Driving modelRear axle two stage deceleration, motor direct driving
    Wheel & TyreAluminum wheel & USA Carlisle 18*8.5-8 6 layers

    Body and Frame


    ItemDescription
    Frame & ChassisSteel alloy framework
    BodyPP engineering plastic front and rear body cover, injected
    RoofGlass fiber reinforced plastic
    WindshieldOrganic glass (PMMA), one-piece or two pieces
    Roof supportsImbedding black coating steel tube in the plastic support
    CushionReborn sponge with artificial leather and plastic bottom cover
    BackrestReborn sponge with artificial leather and plastic cover
    ArmrestPlastic
    Floor matAnti-skidding rubber
    Rear basketPlastic
    Golf bag holderPlastic support with nylon strap
    DashboardBlack plastic material, battery power indicator, ignition key on it
    Beverage holders4 pcs cups holders, 2 pcs for each side
    Side trimPlastic, black
    Score card holderOn the steering wheel

    Color Options


    Body colourWhiteGreySky blue
    Dark blueRedWine red
    GreenDark greenYellow
    PurpleChampagneBlack
    These are the popular colours, but your customized color is available,just provide the right Panton No. color
    Seat & Roof colourBlackBeigeWhite

    Advanced Golf Buggy Cart 2 Passenger 48V Lithium Battery With Curtis ControllerAdvanced Golf Buggy Cart 2 Passenger 48V Lithium Battery With Curtis ControllerAdvanced Golf Buggy Cart 2 Passenger 48V Lithium Battery With Curtis Controller

    Right Hand Steering Brown 48V AC Motor Mini Electric Golf Buggy EXCAR Golf Cart 2

    Four Wheel Fuel Type 48 Volt Electric Golf Carts 2 Seater , Charging Time 8-10 Hours 1

    FAQ


    1.Can you customize the cart according to our special request?

    Yes,we can customize the cart according to your request unless some complex parts we hard to make.


    2.What is your MOQ?

    You can order just 1 unit .But if your order is big, we will provide you with a discount.


    3.Can we put the Logo we designed on the cart?

    Yes, you can put your own Logo on the cart.


    4.What is your lead time for production?

    The typical lead time of our cart is 15 days.


    5.What kind of warranty Excar provides?

    Non-artificial damaged products,shifting for a year or one year repair.
