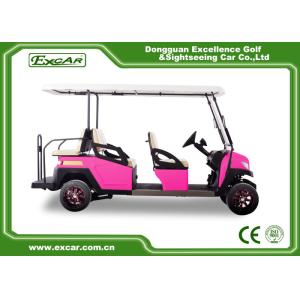

    Fuel Type 4 Person Golf Cart Buggy 48 Voltage ADC Separately Motor

    Ask Lasest Price
    Brand Name : EXCAR
    Model Number : M1S4+2
    Certification : CE
    Price : Negotiate
    Payment Terms : D/A, D/P, Western Union, MoneyGram, L/C, T/T
    Supply Ability : 200 units per month
    Delivery Time : 7 days after received your deposit
    • Product Details
    • Company Profile

    Fuel Type 4 Person Golf Cart Buggy 48 Voltage ADC Separately Motor

    350A controller 4 seats Electric fuel type golf buggy 48 voltage electrical golf car with ISO certificated


    Basic specification


    ItemDescription
    BrandExcar
    ModelM1S4+2
    Overall dimensions (L x W x H)3500x1200x1800mm
    Ground clearance150mm
    Wheelbase2490mm
    Front wheel tread (mm)860mm
    Rear wheel tread (mm)970mm

    Key Components


    SystemDC systemAC system
    ControllerCurtis controller 1266A-5301, 350A, imported from USA directlyCurtis controller 1234E-5321, 350A, imported from USA directly
    Motor

    ADC brand Separately excited

    DC motor 48V 3.7kw

    ADC brand Separately excited

    AC motor 48V 3kw

    BatteryTrojan battery, T875,8V*6pcs, imported from USA directlyTrojan battery, T875,8V*6pcs, imported from USA directly
    Transaxle

    Italian GRAZIANO axle

    with gear ration 1:12

    Italian GRAZIANO axle

    with gear ration 1:16

    Charger

    High Frequency onboard charger

    48V/17A regulator

    High Frequency onboard charger

    48V/17A regulator


    Performance


    systemDC systemAC system
    Passenger Capacity66
    Climbing capacity(full load)20%25%
    Max. forward speed23km/h45km/h
    Endurance mileage60-80km80-100km
    Charging time8-10 hours8-10 hours
    Max. loading weight300kgs300kgs
    Min. turning radius3.9m3.9m
    Max. movement after brake at speed of 20km/h≤4m≤4m

    Steering & suspersion


    ItemDescription
    Steering System

    Self-adjusting rack and pinion steering system,

    with automatic compensation function

    Brake SystemRear wheel mechanical brake
    AcceleratorHolzer type, stepless speed change
    Front suspensionMcpherson independent spring suspension
    Rear suspensionCoil spring hydraulic shock absorber
    Driving modelRear axle two stage deceleration, motor direct driving
    Wheel & TyreAluminum wheel & USA Carlisle 18*8.5-8 6 layers

    Option Accessories


    ItemOption descriptionItemOption description
    1E-key112-point seatbelt
    2Hinged windshield12Battery water refill system
    3Laminated windshield with wiper13Digital meter
    4Steel brush guard14EM brake
    5Front steel basket15Four wheel disc brake
    6Inner rear view mirror16Carlisle 205/50-10 tyre with10inch wheel
    7Side rear view mirror17Ice box
    8Enclosure18Sand bottle
    9Sunshine cover19Sand rake
    10Golf bag cover20Ball washer

    Packing & Shipping


    ModelDimension(mm)20” container40” container
    M14+2With roof & windshieldWithout roof & windshieldWith roof & windshieldWithout roof & windshieldWith roof & windshieldWithout roof & windshield
    3500*1200*18003500*1200*14502 units4units6units12units
